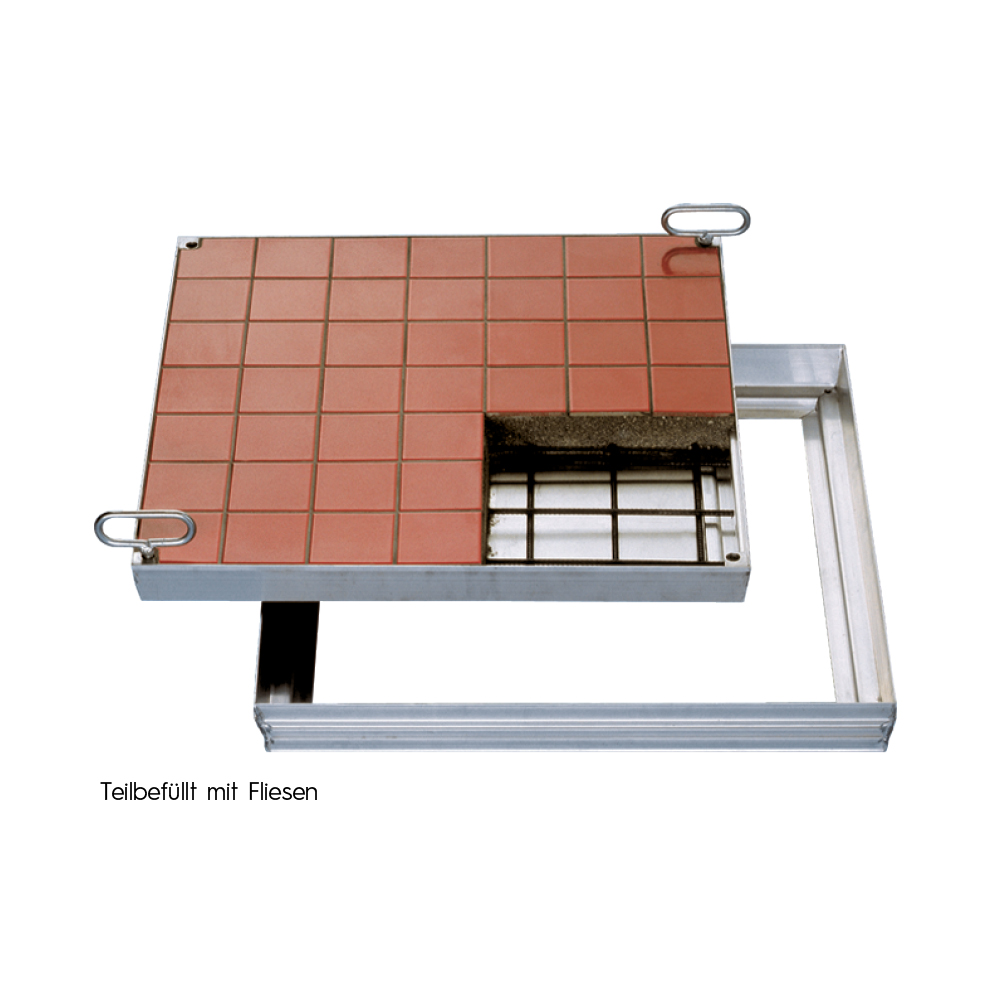

The aluminum access cover provides an odor- and watertight solution for installation or service shafts. It guarantees tightness up to 1000 mm water column and is particularly user-friendly due to its conical design. The stable construction with corner connectors facilitates the laying of tiles and ceramic coverings.
This access cover is ideal for use in floor areas within buildings, where an elegant appearance is crucial. It integrates flush with the floor structure and is nearly invisible when installed. The built-in reinforcement allows for the application of a screed.
The access cover is made of aluminum extrusions and is suitable for a load of 125 kN, making it ideal for walkways. The installation height is 7.7 cm, and it offers a free height for coverings of up to 30 mm.
| Features | |
|---|---|
| Product type | Access cover |
| Material | Aluminum |
| Special features | 125kN for walkways, within buildings |
| Installation height | 77 mm |
| Free height for covering | up to approx. 30 mm |
| Load capacity | 125 kN |
| Weight unfilled | 3 kg, 5 kg, 7 kg, 8 kg, 9 kg, 10 kg, 11 kg, 12 kg, 15 kg, 21 kg, 23 kg |
| Clear shaft dimensions | 20 x 20 cm, 30 x 30 cm, 40 x 40 cm, 45 x 45 cm, 50 x 50 cm, 60 x 40 cm, 60 x 60 cm, 63.5 x 63.5 cm, 70 x 70 cm, 80 x 60 cm, 80 x 80 cm, 100 x 60 cm, 100 x 80 cm, 100 x 100 cm |
| External dimensions | 32 x 32 cm, 42 x 42 cm, 52 x 52 cm, 57 x 57 cm, 62 x 62 cm, 72 x 52 cm, 72 x 72 cm, 75.5 x 75.5 cm, 82 x 82 cm, 92 x 72 cm, 92 x 92 cm, 112 x 72 cm, 112 x 92 cm, 112 x 112 cm |
