The shower board F-BED decentralized vertical drain 120x120x5mm is a waterproof, coated, and tileable rigid foam shower system with integrated slope. It allows for efficient water drainage through the decentralized vertical drain.
This shower board is ideal for use in barrier-free showers and wet areas. It can be fully coated with liquid sealing Material according to DIN 18534-1 and is suitable for water impact class W3-l.
The system offers a drainage performance of 42 l/min and a seal water level of 50 mm according to DIN EN 274. It can be trimmed all around if necessary to facilitate installation. For use with wheelchairs, a minimum tile size of 100 x 100 mm is required.
| Features | |
|---|---|
| Product type | Shower board F-BED decentralized vertical drain 120x120x5mm |
| Slope | approx. 2.5% |
| Drainage performance | 42 l/min |
| Seal water level | 50 mm |
| Installation height | 50 mm |

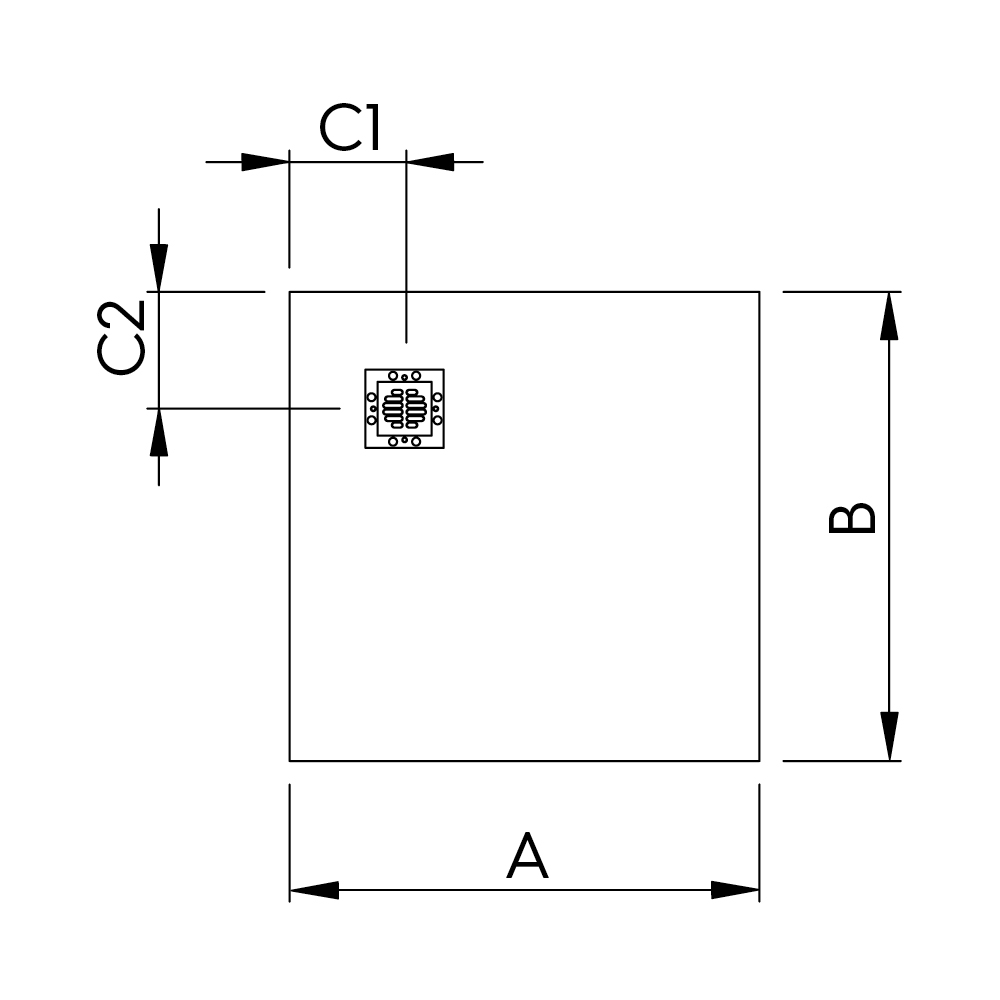

| Dimensions | 120 x 120 x 5.0 cm |
