The structural expansion joint profile made of aluminum with a smooth flush TPE insert is specifically designed for temporary use under loads from cars, trucks, and pneumatic forklifts. It provides a reliable solution for accommodating movements in structures.
Typical areas of application include industrial environments where a flexible and load-bearing joint solution is required. The profile is not suitable for permanent use but offers an effective solution for temporary loading scenarios.

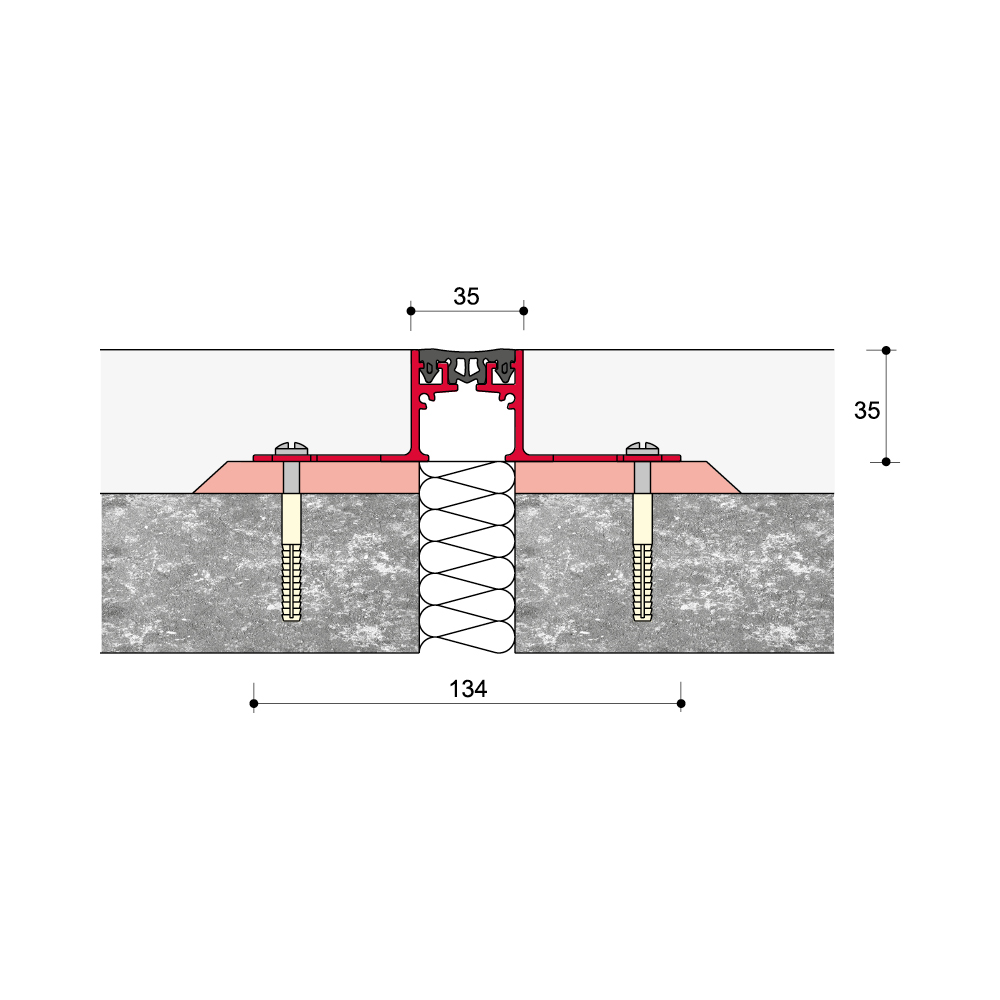

Technical properties include a maximum joint width of 30 mm and a joint tolerance of +/- 3 mm. The visible profile width is 35 mm, while the total profile width measures 134 mm. The profile is available in a length of 500 cm.
| Properties | |
|---|---|
| Product type | Structural expansion joint profiles made of aluminum with smooth flush TPE insert 500cm 60mm grey |
| Material | Aluminum |
| Max. joint width | 30 mm |
| Joint tolerance | +/- 3 mm |
| Visible profile width | 35 mm |
| Total profile width | 134 mm |
| Length | 500 cm |
